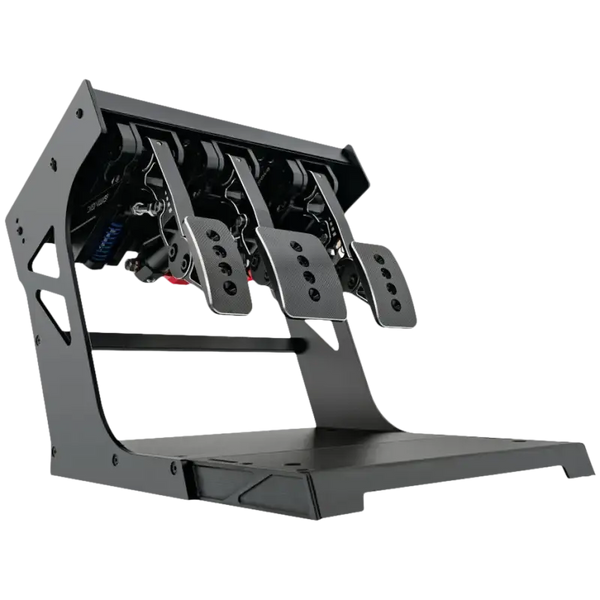

Simagic P1000i-RS Pedal Set – Inverted, Black

Authentic Motorsport Feel with Inverted Realism

The Simagic P1000i-RS is a top-tier inverted sim racing pedal set built for drivers who want a true-to-life cockpit experience. Designed to replicate the pedal orientation found in professional GT and formula race cars, this set combines inverted ergonomics with hydraulic braking, high-resolution sensors, and a modular structure for unmatched realism and adaptability.

High-Fidelity Control Through Advanced Engineering

• Hydraulic brake system with a 100 kg load cell delivers progressive, pressure-based braking—just like in real race cars.

• Hall sensors on throttle and clutch pedals provide wear-free, ultra-precise input detection.

• 12-bit resolution (4,096 steps) enables extremely fine pedal modulation across all inputs.

Whether you're trail braking into a hairpin or modulating throttle on corner exit, the P1000i-RS offers the control and responsiveness needed for peak performance.

Inverted Layout for Realistic Cockpit Geometry

The inverted design places pedals in an overhead position, replicating the feel of professional racing cockpits and improving ergonomic alignment in GT and formula-style rigs. It enhances comfort and realism, especially for racers using a full cockpit frame or static racing seat.

Modular and Customizable Design

With up to 27,648 pedal configuration combinations, the P1000i-RS supports full adjustability:

• Pedal travel, spring stiffness, tilt angle, and position can all be customized.

• Compatible with Simagic’s ecosystem of upgrades, including haptic feedback modules and hydraulic throttle options.

Key Features

• 3-pedal inverted set (throttle, brake, clutch)

• Hydraulic brake with 100 kg load cell for progressive braking feel

• Hall sensors for throttle and clutch (maintenance-free)

• 12-bit resolution for high-precision control

• Fully adjustable and modular with 27,648 possible configurations

• CNC-machined aluminum for rigidity and durability

• PC compatibility via USB or Simagic CAN-Bus

• Ideal for GT and Formula racing simulators

Technical Specifications

• Color: Black

• Material: CNC-machined aluminum

• Brake System: Hydraulic with 100 kg load cell

• Sensors:
  – Throttle: Hall Sensor
  – Brake: Load Cell (Hydraulic)
  – Clutch: Hall Sensor

• Resolution: 12-bit (4,096 steps)

• Dimensions:
  – Length: 267 mm
  – Width: 336 mm
  – Height: 334.8 mm

• Weight: Approx. 6.5–7 kg

• Lighting / RGB: None

• Compatibility: PC via USB / Simagic Wheelbases via CAN-Bus

• Inverted Mounting: Yes (factory configuration)
